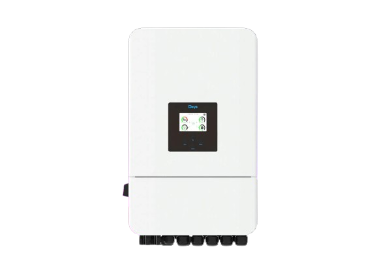

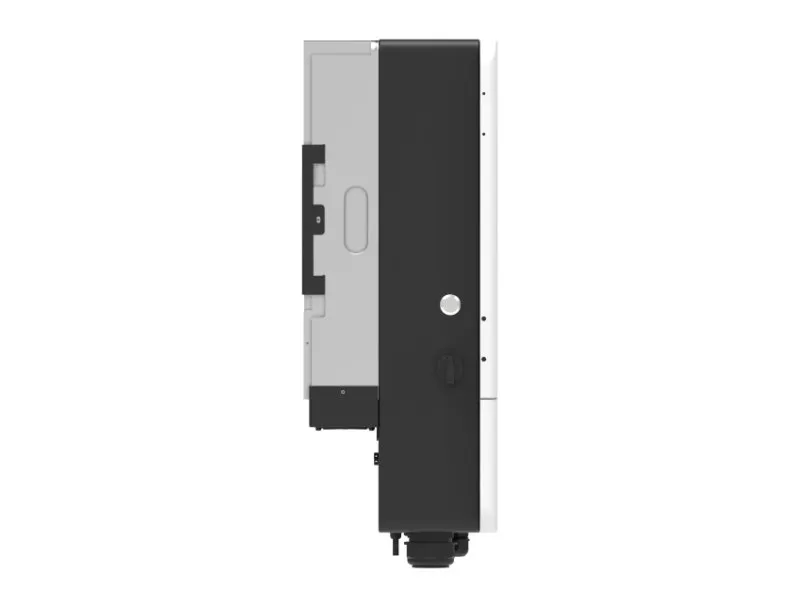

Deye 8KW Hybrid Inverter (SUN-8K-SG05LP1-EU-SM2)

Single Phase | 48V Low Voltage | 2025 Model

The Deye 8KW Hybrid Inverter combines solar power generation with battery storage, offering intelligent energy management and robust performance for residential and small commercial systems. Designed for both new installations and retrofits, this 48V single-phase inverter supports up to 16 units in parallel for scalable power solutions.

Battery Input Specifications

• Battery Type: Lithium-ion or Lead-acid

• Battery Voltage Range: 40V – 60V

• Max Charging Current: 190A

• Max Discharging Current: 190A

• Charging Strategy (Li-ion): Self-adaptive to BMS

• Number of Battery Inputs: 1

Solar (PV) Input Specifications

• Max PV Input Power: 16,000W

• Max PV Input Voltage: 500V

• Start-up Voltage: 125V

• MPPT Voltage Range: 150V – 425V

• Rated PV Input Voltage: 370V

• MPPT Trackers: 2

• Strings per MPPT Tracker: 2

• Max Operating PV Input Current: 34A + 34A

• Max Short-Circuit Current: 50A

AC Output Specifications

• Rated AC Output Power: 8,000W

• Max AC Output Power: 8,800VA

• Peak Power (Off-grid): 2x rated power (10 seconds)

• Rated AC Output Current: 40A / 38.3A

• Max AC Output Current: 36.4A / 34.8A

• Max Continuous AC Passthrough (Grid to Load): 50A

• Power Factor Range: 0.8 leading to 0.8 lagging

• Rated Voltage: 220V / 230V (Single Phase)

• Grid Frequency: 50Hz / 60Hz (Auto-detect)

Performance & Efficiency

• Max Efficiency: 97.6%

• Euro Efficiency: 96.5%

• MPPT Efficiency: >99%

• THD (Total Harmonic Distortion): <3% of nominal power

• DC Injection Current: <0.5% In

Protection & Safety

• DC Reverse Polarity Protection

• AC Output Overcurrent Protection

• Thermal & Overvoltage Protection

• Short Circuit Protection

• Residual Current Detection (RCD)

• Ground Fault Current Monitoring

• DC Component Monitoring

• Surge Protection: Type II (DC & AC)

• Arc Fault Circuit Interrupter (Optional)

• Anti-islanding and Insulation Monitoring

Communication & Monitoring

• Communication Interfaces: RS485, RS232, CAN

• Monitoring Modes: Wi-Fi / GPRS / 4G / Bluetooth / LAN (Optional)

• Remote Monitoring via Mobile App or Web Portal

General Information

• IP Protection Class: IP65 (Indoor/Outdoor)

• Cooling Method: Intelligent Air Cooling

• Noise Level: <30dB

• Operating Temperature: -40°C to +60°C (Derating above 45°C)

• Max Installation Altitude: 2000m

• Physical Size (WxHxD): 366mm × 589.5mm × 237mm

• Weight: 26.8kg

• Mounting: Wall-Mounted

• Warranty: 5 Years (Optional 10 Years)
